Finish

Painted aluminum. White RAL 9016, Black NCS S9000, Grey RAL
7030, Green RAL 7022. Other colours on request. Adjustable.


LED info

System power 17W. Luminaire Luminous Flux see above. CCT
4000K. (3000K on request) SDCM 3. CRI >80.


Mounting

In ceiling or on wall.


Connection

Terminalblock.


Design

Jens Fager 2017.



Product specification There are now more Convex models. The characteristically amiable, gently curved top is available as a wall fixture for both indoor and outdoor use, pendant, pole fixture, bollard and now as an even larger pendant and spotlight. All just as useful, energy efficient and providing perfect illumination. Diameter 160 mm.Spotlight are available in 3 beam angles narrow, medium and wide. Also available with 3-phase adaptor and dimmable 3-phase adaptor that fits Global Trac Pulse (DALI).



Mounting

On ceiling or wall.

W MOUNTING BEAM ART.
LED1325LM/17W   18° 8400-1-XX
LED1325LM/17W   18° 8400-1-XXHFF
LED1250LM/17W   24° 8401-1-XX
LED1250LM/17W   24° 8401-1-XXHFF
LED1310LM/17W   54° 8402-1-XX
LED1310LM/17W   54° 8402-1-XXHF

XX = -01 White, -06 Black, -11 Grey, -12 Green.HFF = Dimable DALI.



Mounting

HFF include Global Pulse trac adaptor. Other adaptors on request.



W BEAM ART.
LED1325LM/17W 18° 8405-1-XX
LED1325LM/17W 18° 8405-1-XXHFF
LED1250LM/17W 24° 8406-1-XX
LED1250LM/17W 24° 8406-1-XXHFF
LED1310LM/17W 54° 8407-1-XX
LED1310LM/17W 24° 8407-1-XXHFF
XX = -01 White, -06 Black, -11 Grey, -12 Green
HFF = Dimmable DALI including Global Pulse trac 3-phase adaptor. Other adaptors on request.

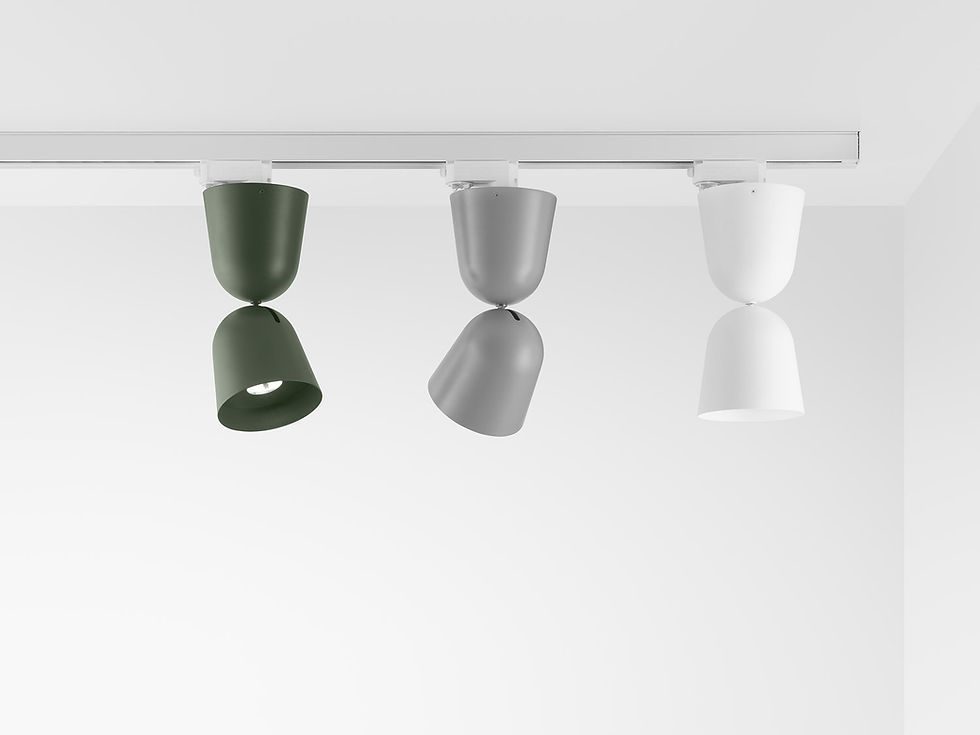

Convex spotlight
